E10-14 Dock Lift

دانلود کاتالوگ

General specifications

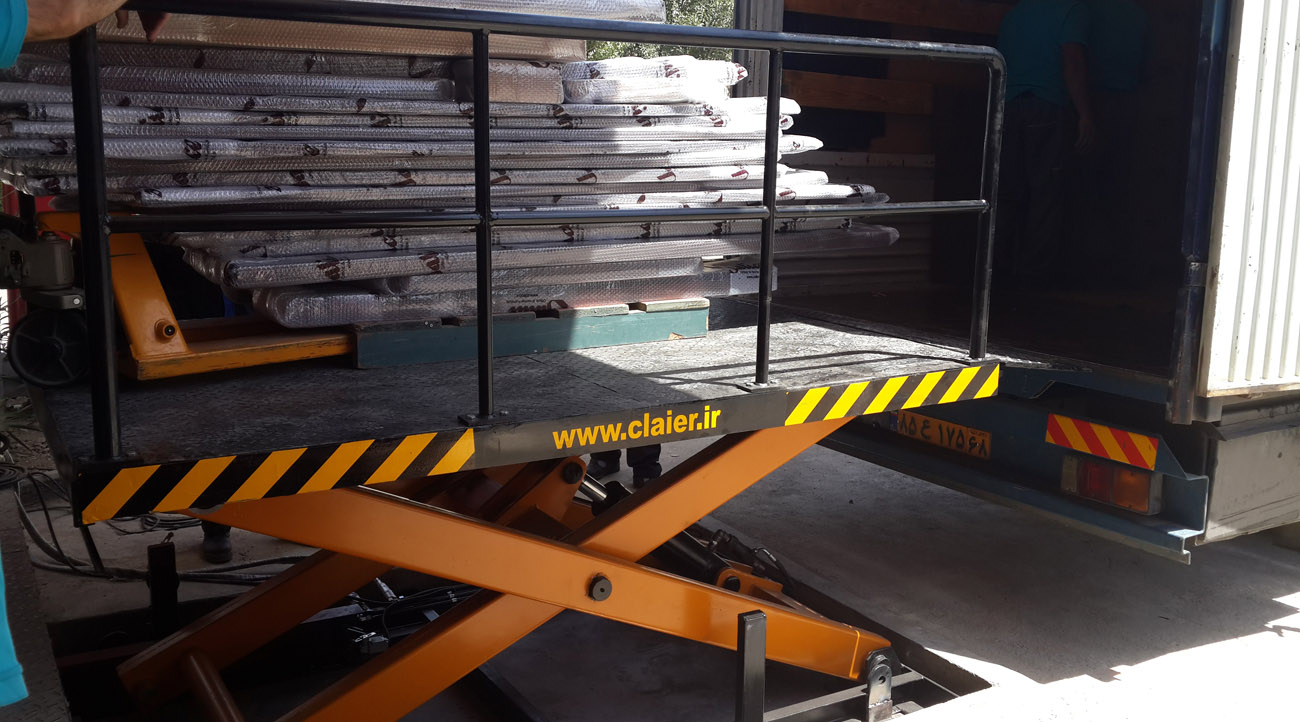

E10-14 Loading Lifting platform

Challenges of loading and unloading are known to all. loading table is one of the equipment that gives speed and ease to the loading and unloading process. this hydraulic lift is able to lift 1000 kg of weight for 1.4 meters, this ability makes this dock lift suitable for lifting stackers, and trucks. compared to dock levelers, dock lifts are used when loading ramps cannot be installed on the loading platform. the speed of loading tables is less than  dock levelers but compared to when no equipment is used they still make a huge difference in the speed of the process. the lip installed on the edge of the platform fills the gap between the lifting platform and the truck. advantages of using these loading tables are many, but one of the most important advantages of these lifting platforms is that by using these dock lifts, the lifespan of your other equipment such as forklifts and stackers will increase. structure of these loading tables are painted with electrostatic paint after going through sand blast, making them durable for any climate. also galvanized warm coating is an option for humid areas. affordable maintenance and the option to put handrails on the dock lift, increases the safety and lifespan of this loading platform.

Technical Specifications

Description

E10-14 Loading Lifting platform

Challenges of loading and unloading are known to all. loading table is one of the equipment that gives speed and ease to the loading and unloading process. this hydraulic lift is able to lift 1000 kg of weight for 1.4 meters, this ability makes this dock lift suitable for lifting stackers, and trucks. compared to dock levelers, dock lifts are used when loading ramps cannot be installed on the loading platform. the speed of loading tables is less than  dock levelers but compared to when no equipment is used they still make a huge difference in the speed of the process. the lip installed on the edge of the platform fills the gap between the lifting platform and the truck. advantages of using these loading tables are many, but one of the most important advantages of these lifting platforms is that by using these dock lifts, the lifespan of your other equipment such as forklifts and stackers will increase. structure of these loading tables are painted with electrostatic paint after going through sand blast, making them durable for any climate. also galvanized warm coating is an option for humid areas. affordable maintenance and the option to put handrails on the dock lift, increases the safety and lifespan of this loading platform.

مشخصات فنی

Length  2.5 m
Width  1.8 m
Height  varies based on customer’s need
Capacity  1000 kg
Working Height  1.4 m
Lip dimensions varies based on customer’s need
Power Source  380V
Control Panel  on the side
Power Pack  Made in Iran

سایر ویژگی ها

  • ساخت کلایر ایران
  • سکوی بار بزرگ
  • طول عمر بالا به دلیل سازه فولادی و مکانیزم بالابری آکاردئونی
  • پین و بوش های آلیاژی و مقاوم در برابر سایش
  • سندبلاست و رنگ کوره ای جهت مقاومت در شرایط مختلف جوی
  • لبه لولایی هیدرولیکی جهت پر کردن فاصله بین کامیونت و بالابر
  •  طراحی و تولید مطابق با آخرین استاندارد های BSEN:280 اروپا



گارانتی بالابر:

  •  بالابر تخلیه و بارگیری E10-40 دارای یک سال گارانتی کامل می باشد.
  •  بالابر هیدرولیکی فوق شامل ۲۰ سال خدمات پس از فروش است.



ایمنی داک لیفت:

  • سیستم ایمنی جلوگیری از بالاروی در صورت بارگیری خارج از ظرفیت
  • مجهز به شیر هیدرولیکی ضد سقوط
  • پوشش ضد لغزش در کف پلتفرم
  • حفاظ استاندارد در طرفین سکو
  • شیر تخلیه اضطراری در صورت قطع برق
  • مدار کنترل ۲۴ ولت جهت حفظ ایمنی اپراتور
  • میکروسوئیچ در انتهای کورس بالابری



تجهیزات قابل سفارش:

  • پوشش گالوانیزه گرم جهت محیط های بسیار مرطوب
  • چراغ ایمنی برای راهنمایی راننده کامیونت
  • گاید پارک برای سهولت قرار گیری روبروی بالابر بارگیری
  • دنده پنج مناسب لاستیک کامیونت
  • دیواره محافظ در اطراف داک لیفت



توجه: موارد فوق در راستای افزایش کیفیت و ارتقای ایمنی، ممکن است تغییر نماید. برای اطلاعات بیشتر با کارشناسان کلایر تماس بگیرید.

ابعاد





کاربردها

In industrial factories, loading sites, warehouses and distribution centers, when dock levelers cannot be installed, dock lifts are used to make the loading and unloading process faster and easier. due to 1.4 m lifting course, this dock lift is suitable for light weight trucks. the capacity will also allow forklifts and stackers to move on the platform.

دیاگرام کاری
