Tunnel lifting platform is one of the equipment used by tunnel construction contractors or companies and department of roads and urban development for installation and maintenance operations. this truck mounted platform is equipped with a large platform capable of fitting large equipment. using this scissor lift installing and maintaining jet fans are done easily and fast. this truck mounted scissor lift has 1400 kg of capacity making it possible to lift heavy tunnel equipment, for example heavy cables to be installed in high places.
Also maintaining lighting systems in tunnels will become so much easier using this truck mounted scissor lift. controlling this access platform is easy and the operator can control it by only using two buttons. 4 stabilizing jacks are provided for more support in this tunnel lifting platform. these hydraulic jacks are equipped with sensors to alarm the operator in case of any problem.
EDT1470 truck mounted scissor lift is equipped with anti-overloading system avoiding the lifting platform from lifting in case of overweight. tunnel lifting platform is equipped with two extended platforms to increase horizontal reach. this scissor lift uses the exciting force of the car to lift and doesn’t need electricity although customers can order an extra electric engine. this truck mounted scissor lift can be installed on the back of trucks with more than 6 tons of capacity. CLAIER provides 1 year warranty and 10 years of services to the customers of this industrial lifting platform.
Tunnel lifting platform is one of the equipment used by tunnel construction contractors or companies and department of roads and urban development for installation and maintenance operations. this truck mounted platform is equipped with a large platform capable of fitting large equipment. using this scissor lift installing and maintaining jet fans are done easily and fast. this truck mounted scissor lift has 1400 kg of capacity making it possible to lift heavy tunnel equipment, for example heavy cables to be installed in high places.
Also maintaining lighting systems in tunnels will become so much easier using this truck mounted scissor lift. controlling this access platform is easy and the operator can control it by only using two buttons. 4 stabilizing jacks are provided for more support in this tunnel lifting platform. these hydraulic jacks are equipped with sensors to alarm the operator in case of any problem.
EDT1470 truck mounted scissor lift is equipped with anti-overloading system avoiding the lifting platform from lifting in case of overweight. tunnel lifting platform is equipped with two extended platforms to increase horizontal reach. this scissor lift uses the exciting force of the car to lift and doesn’t need electricity although customers can order an extra electric engine. this truck mounted scissor lift can be installed on the back of trucks with more than 6 tons of capacity. CLAIER provides 1 year warranty and 10 years of services to the customers of this industrial lifting platform.
مشخصات فنی
</tr>td>
Working Height
7 m
Capacity
1400 kg
Capacity of extended platform
120 kg
length of extended platform
50 cm
Dimensions of platform
2.1 * 4.1 m
Proper truck
more than 6 tons of capacity
سایر ویژگی ها
ساخت ایران
استفاده از فولاد آلیاژی صنعتی در ساخت بازوهای بالابر هیدرولیکی
Made in Iran
Industrial steel used to build the scissors
Sandblast and automobile paint for the structure
Hydraulic scissor lifting system
Controlling lifting from the platform and the chassis
Using the truck as the power source
50 cm extended platform to increase horizontal reach
Wind resistance up to 12.5 m/s
Hour counter
Designed and manufactured based on latest BSEN:280 standards
ISO9001 certificate from QAL in England
Warranty:
1 year warranty
10 years of services
Safety:
Avoiding lifting in case the jacks are not stabilized properly
Anti-overload system
Anti-fall system installed on the hydraulic jacks
Checkered plate on the platform and the extended platform
Manual discharge valve for emergencies
Emergency stop button installed on control panels
Optional Features:
Longer extended platform
Different working height and dimensions based different situations
Roller plate for easy transportation
Spinning light on the automobile’s cabin
Warning: Features may change to increase safety. call our specialists for more information.
ابعاد
Dimensions may differ according to the type of truck.
(H4) : 2.3 m
(H3) :3.4 m
(W): 2.3 m
کاربردها
Installing air conditioning jet fans is one of the most important activities done in tunnels. these jet fans have large dimensions and heavy weight they are also difficult to install because cranes are not useable in tunnels. that’s why tunnel lifting platforms are so useful and frequently used by contractors.
Truck mounted platform mentioned above can be used in other activities related to tunnels. installation and maintenance of lighting systems, cables, repairs and inspections will become so much faster and easier with this industrial lifting platform. specially in construction, many people will be able to reach height safely because of its large platform.

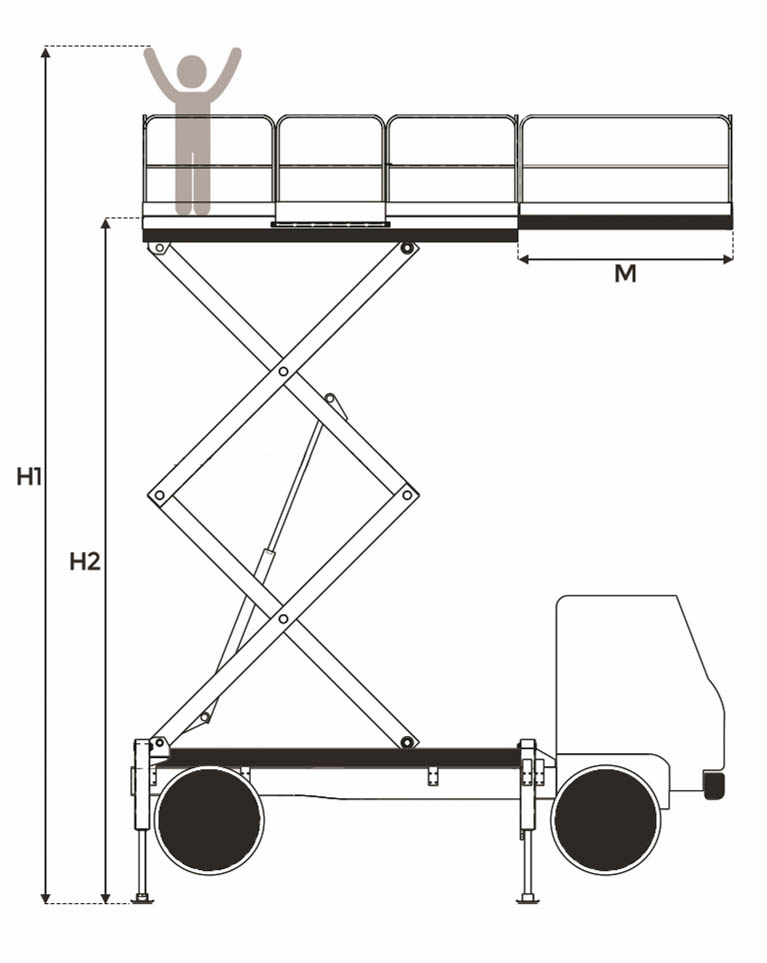

دیاگرام کاری
(H1): 7 m
(H2): 5 m
Capacity: 1400 kg
Capacity of extended platform: 120 kg (on the side or on the front)
EDT14-70 working diagram
