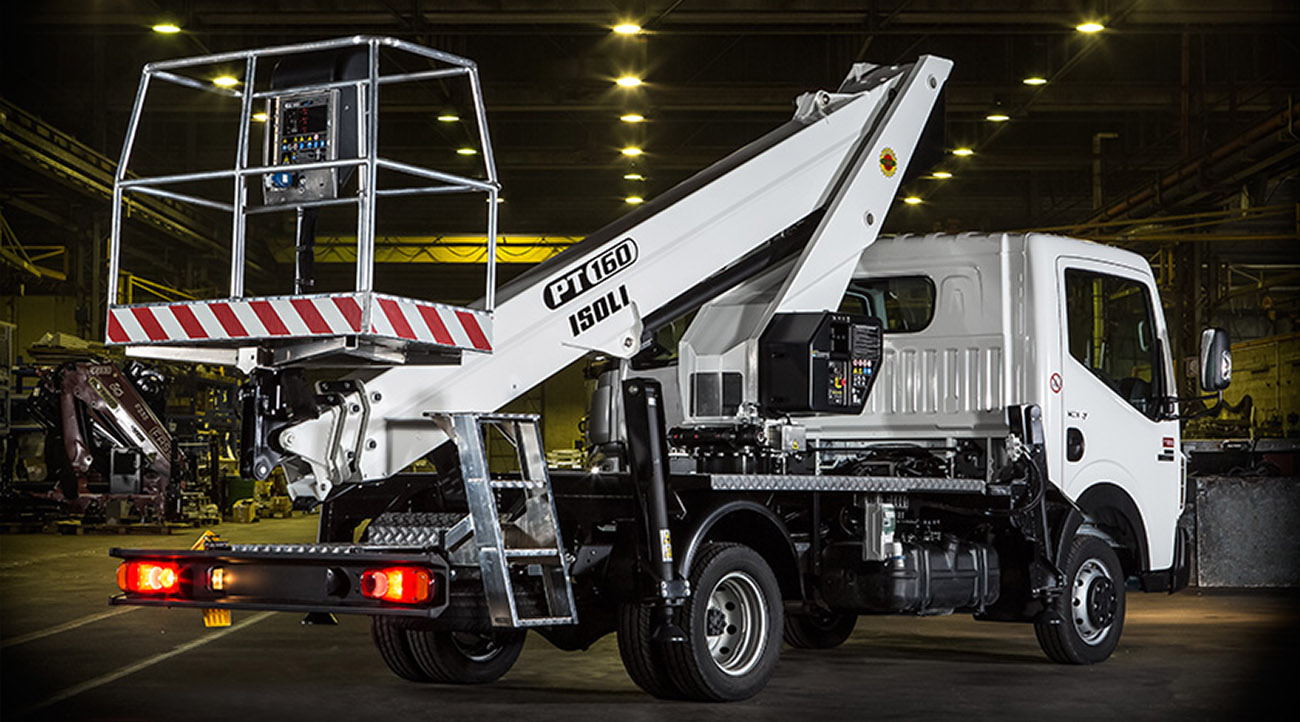

This telescopic truck mounted platform is made by ISOLI in Italy and it can be installed on trucks that weigh more than 3.5 tons. PT160 telescopic lift has a completely proportional hydraulic control system for precise and easy steering. In this Italian lifting platform, all chains and hydraulic jacks are put inside the telescopic structure. This feature keeps these equipment safe from external destructive factors such as sunlight providing more durability.
PT160 hydraulic lift provides 16 meters of working height and 250 kg capacity. State of the art safety systems are installed on this telescopic truck mount. Interlock side jacks and boom, weight indicator, etc. With the anti-crashing system, the boom will not crash into driver’s cabin. Strenx steel used in the boom structure provides high durability and robotic welding indicated the high quality of this product.
Customers can order this telescopic boom lift with fiberglass platform. Pipings can be installed as well for equipment such as a pressure washer. PT160 telescopic truck mounted platform is more lightweight compared to similar models. This feature helps with the lifespan of the truck and depreciation. This product is painted with a layer of primer and then by immersion method. All the micro switches on this lifting platform are IP65, durable for humidity and difficult situations.
CLAIER is ISOLI’s legal distributor in Iran. Providing this 16 meter telescopic truck mount with 1 year warranty and 10 years of services.
This telescopic truck mounted platform is made by ISOLI in Italy and it can be installed on trucks that weigh more than 3.5 tons. PT160 telescopic lift has a completely proportional hydraulic control system for precise and easy steering. In this Italian lifting platform, all chains and hydraulic jacks are put inside the telescopic structure. This feature keeps these equipment safe from external destructive factors such as sunlight providing more durability.
PT160 hydraulic lift provides 16 meters of working height and 250 kg capacity. State of the art safety systems are installed on this telescopic truck mount. Interlock side jacks and boom, weight indicator, etc. With the anti-crashing system, the boom will not crash into driver’s cabin. Strenx steel used in the boom structure provides high durability and robotic welding indicated the high quality of this product.
Customers can order this telescopic boom lift with fiberglass platform. Pipings can be installed as well for equipment such as a pressure washer. PT160 telescopic truck mounted platform is more lightweight compared to similar models. This feature helps with the lifespan of the truck and depreciation. This product is painted with a layer of primer and then by immersion method. All the micro switches on this lifting platform are IP65, durable for humidity and difficult situations.
CLAIER is ISOLI’s legal distributor in Iran. Providing this 16 meter telescopic truck mount with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
16 m
Lifting Height
14 m
Horizontal reach
8.9 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.

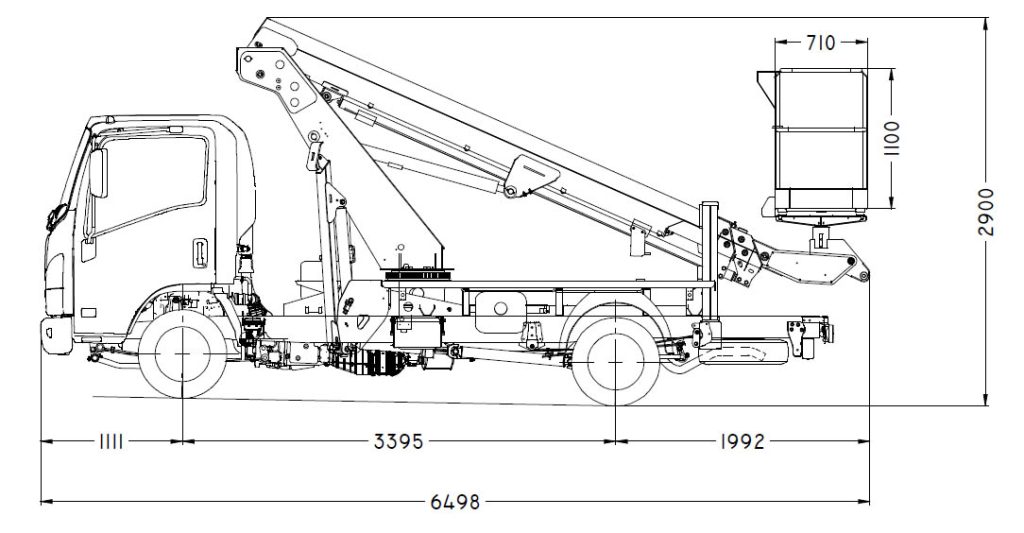

Dimensions
Dimensions may differ due to the kind of truck. PT 160 Dimensions
Uses
Telescopic truck mounts are mostly used for city services. Maintaining traffic lights and traffic control cameras, hanging flags and traffic signs becomes safe and easy with the help of this hydraulic lift. In petrochemicals and oil refineries, heavy repair operations and large container paintings will be done faster. Also large industries such as steel and copper mines and companies, need this telescopic truck mount for their daily activities. Tree pruning, building cleaning, bridge maintenance, decorations around the city, … are all purposes for this lifting platform.

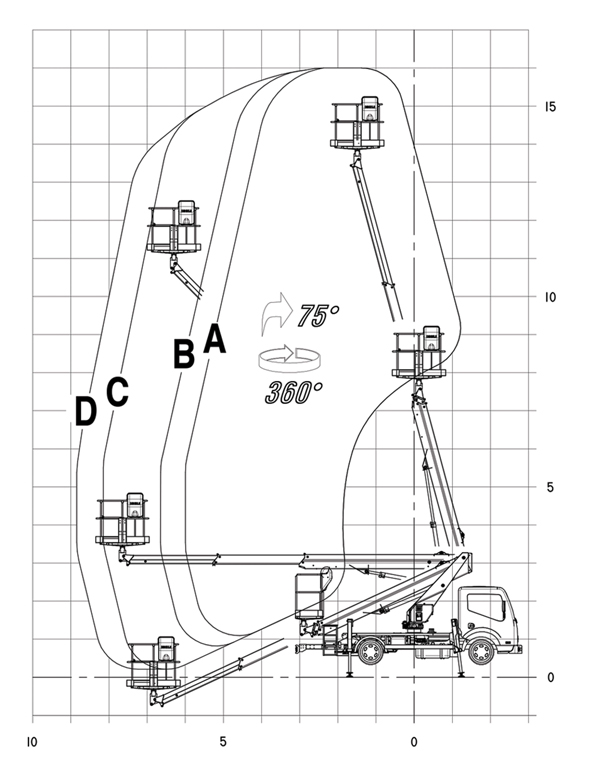

Working Diagram
Vertical Reach : 16 m
Capacity : A=250kg – B=200kg – C=120kg – D=80kg
PT 160 Working Diagram
