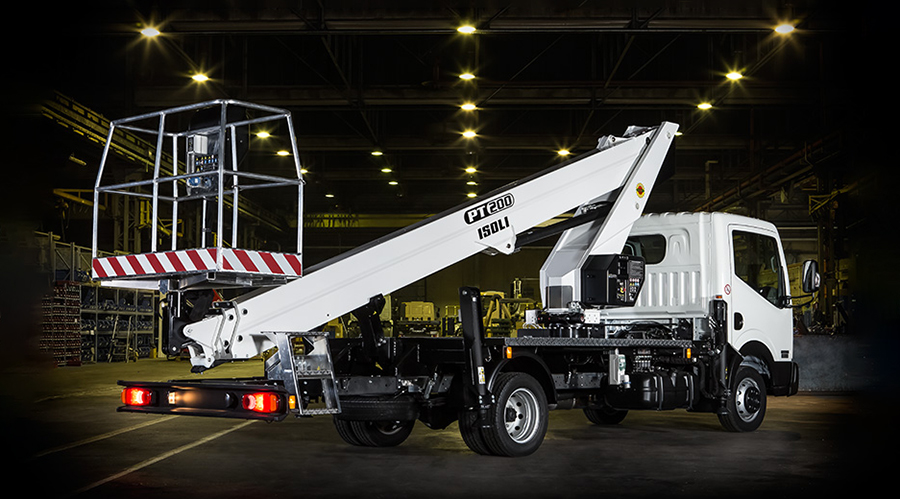

PT200 is a telescopic truck mounted platform made by ISOLI in Italy. Capacity of this lifting platform is 250 kg and it’s suitable to lift 2 people. One of the benefits of this access platform is light weight is has compared to similar models. The light weight of this telescopictruck mounted lift is due to the strenx steel used in the boom part. This kind of steel is 3 times more sturdy than regular steel. Therefore due to the light weight of the access platform it can be installed on trucks heavier than 3.5 tons.
This telescopictruck mounted lift is well equipped with latest safety systems. Interlock system between the side jacks and the lifting platform, Anti-smash system, moment control, etc, are some of them. Therefore not only the safety of your operator is guaranteed but also your device is safe during the operation. Control system on this telescopic truck mounted lift is completely hydraulic proportional, to operate simple, fast and smooth.
Customers can order this access platform with aluminum or fiberglass (electrical insulator) platform based on the operation they are planning to do. Aluminum platforms are more durable but not suitable for electricity related activities. This truck mounted lift provides 19.9 meters of vertical working height and 10.8 meters of horizontal reach. One of its advantages is the high speed it provides in placement and operation.
CLAIER is the legal distributor of ISOLI in Iran, providing you with this telescopic truck mount with 1 year warranty and 10 years of services.
PT200 is a telescopic truck mounted platform made by ISOLI in Italy. Capacity of this lifting platform is 250 kg and it’s suitable to lift 2 people. One of the benefits of this access platform is light weight is has compared to similar models. The light weight of this telescopictruck mounted lift is due to the strenx steel used in the boom part. This kind of steel is 3 times more sturdy than regular steel. Therefore due to the light weight of the access platform it can be installed on trucks heavier than 3.5 tons.
This telescopictruck mounted lift is well equipped with latest safety systems. Interlock system between the side jacks and the lifting platform, Anti-smash system, moment control, etc, are some of them. Therefore not only the safety of your operator is guaranteed but also your device is safe during the operation. Control system on this telescopic truck mounted lift is completely hydraulic proportional, to operate simple, fast and smooth.
Customers can order this access platform with aluminum or fiberglass (electrical insulator) platform based on the operation they are planning to do. Aluminum platforms are more durable but not suitable for electricity related activities. This truck mounted lift provides 19.9 meters of vertical working height and 10.8 meters of horizontal reach. One of its advantages is the high speed it provides in placement and operation.
CLAIER is the legal distributor of ISOLI in Iran, providing you with this telescopic truck mount with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
19.9 m
Lifting Height
17.7 m
Horizontal reach
10.8 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.

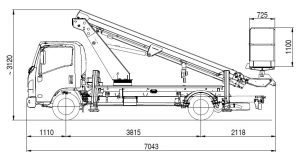

PT200 Dimensions
Uses
Telescopic truck mounted platforms are popular among operators due to their high speed and simple mechanism. PT200 is an Italian access platform with high quality and long durability as well as elegance. Therefore for customers looking for high performance and durability can consider this lifting platform as one of their main choices. Since cables, chains and hydraulic pipes in this access platform are places inside the mast, these parts are protected against external harmful factors such as wind, sunlight and rain. Also because of the high quality paint and electric parts used in this truck mounted lift it can be an excellent choice for humid areas. Petrochemicals and oil refineries use this access platform commonly for painting their containers, installing equipment, piping, etc.
Working Diagram
Vertical Reach : 19.9 m
Capacity : A=250kg – B=200kg – C=120kg – D=80kg

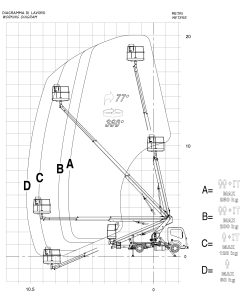

PT 200 Working Diagram
Reviews
محسن مخدومی –
بالابر تلسکوپی PT 200
پشتیبانی کلایر –
با سلام. متاسفانه پیام شما برای بالابر پشت کامیونی مورد نظر به درستی منتشر نشده است.
PT200 is a telescopic truck mounted platform made by ISOLI in Italy. Capacity of this lifting platform is 250 kg and it’s suitable to lift 2 people. One of the benefits of this access platform is light weight is has compared to similar models. The light weight of this telescopictruck mounted lift is due to the strenx steel used in the boom part. This kind of steel is 3 times more sturdy than regular steel. Therefore due to the light weight of the access platform it can be installed on trucks heavier than 3.5 tons.
This telescopictruck mounted lift is well equipped with latest safety systems. Interlock system between the side jacks and the lifting platform, Anti-smash system, moment control, etc, are some of them. Therefore not only the safety of your operator is guaranteed but also your device is safe during the operation. Control system on this telescopic truck mounted lift is completely hydraulic proportional, to operate simple, fast and smooth.
Customers can order this access platform with aluminum or fiberglass (electrical insulator) platform based on the operation they are planning to do. Aluminum platforms are more durable but not suitable for electricity related activities. This truck mounted lift provides 19.9 meters of vertical working height and 10.8 meters of horizontal reach. One of its advantages is the high speed it provides in placement and operation.
CLAIER is the legal distributor of ISOLI in Iran, providing you with this telescopic truck mount with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
19.9 m
Lifting Height
17.7 m
Horizontal reach
10.8 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.
PT200 Dimensions
Uses
Telescopic truck mounted platforms are popular among operators due to their high speed and simple mechanism. PT200 is an Italian access platform with high quality and long durability as well as elegance. Therefore for customers looking for high performance and durability can consider this lifting platform as one of their main choices. Since cables, chains and hydraulic pipes in this access platform are places inside the mast, these parts are protected against external harmful factors such as wind, sunlight and rain. Also because of the high quality paint and electric parts used in this truck mounted lift it can be an excellent choice for humid areas. Petrochemicals and oil refineries use this access platform commonly for painting their containers, installing equipment, piping, etc.
Working Diagram
Vertical Reach : 19.9 m
Capacity : A=250kg – B=200kg – C=120kg – D=80kg
PT 200 Working Diagram
Reviews
محسن مخدومی –
بالابر تلسکوپی PT 200
پشتیبانی کلایر –
با سلام. متاسفانه پیام شما برای بالابر پشت کامیونی مورد نظر به درستی منتشر نشده است.
PT200 is a telescopic truck mounted platform made by ISOLI in Italy. Capacity of this lifting platform is 250 kg and it’s suitable to lift 2 people. One of the benefits of this access platform is light weight is has compared to similar models. The light weight of this telescopictruck mounted lift is due to the strenx steel used in the boom part. This kind of steel is 3 times more sturdy than regular steel. Therefore due to the light weight of the access platform it can be installed on trucks heavier than 3.5 tons.
This telescopictruck mounted lift is well equipped with latest safety systems. Interlock system between the side jacks and the lifting platform, Anti-smash system, moment control, etc, are some of them. Therefore not only the safety of your operator is guaranteed but also your device is safe during the operation. Control system on this telescopic truck mounted lift is completely hydraulic proportional, to operate simple, fast and smooth.
Customers can order this access platform with aluminum or fiberglass (electrical insulator) platform based on the operation they are planning to do. Aluminum platforms are more durable but not suitable for electricity related activities. This truck mounted lift provides 19.9 meters of vertical working height and 10.8 meters of horizontal reach. One of its advantages is the high speed it provides in placement and operation.
CLAIER is the legal distributor of ISOLI in Iran, providing you with this telescopic truck mount with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
19.9 m
Lifting Height
17.7 m
Horizontal reach
10.8 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.
PT200 Dimensions
Uses
Telescopic truck mounted platforms are popular among operators due to their high speed and simple mechanism. PT200 is an Italian access platform with high quality and long durability as well as elegance. Therefore for customers looking for high performance and durability can consider this lifting platform as one of their main choices. Since cables, chains and hydraulic pipes in this access platform are places inside the mast, these parts are protected against external harmful factors such as wind, sunlight and rain. Also because of the high quality paint and electric parts used in this truck mounted lift it can be an excellent choice for humid areas. Petrochemicals and oil refineries use this access platform commonly for painting their containers, installing equipment, piping, etc.
Working Diagram
Vertical Reach : 19.9 m
Capacity : A=250kg – B=200kg – C=120kg – D=80kg
PT 200 Working Diagram
Reviews
محسن مخدومی –
بالابر تلسکوپی PT 200
پشتیبانی کلایر –
با سلام. متاسفانه پیام شما برای بالابر پشت کامیونی مورد نظر به درستی منتشر نشده است.
PT200 is a telescopic truck mounted platform made by ISOLI in Italy. Capacity of this lifting platform is 250 kg and it’s suitable to lift 2 people. One of the benefits of this access platform is light weight is has compared to similar models. The light weight of this telescopictruck mounted lift is due to the strenx steel used in the boom part. This kind of steel is 3 times more sturdy than regular steel. Therefore due to the light weight of the access platform it can be installed on trucks heavier than 3.5 tons.
This telescopictruck mounted lift is well equipped with latest safety systems. Interlock system between the side jacks and the lifting platform, Anti-smash system, moment control, etc, are some of them. Therefore not only the safety of your operator is guaranteed but also your device is safe during the operation. Control system on this telescopic truck mounted lift is completely hydraulic proportional, to operate simple, fast and smooth.
Customers can order this access platform with aluminum or fiberglass (electrical insulator) platform based on the operation they are planning to do. Aluminum platforms are more durable but not suitable for electricity related activities. This truck mounted lift provides 19.9 meters of vertical working height and 10.8 meters of horizontal reach. One of its advantages is the high speed it provides in placement and operation.
CLAIER is the legal distributor of ISOLI in Iran, providing you with this telescopic truck mount with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
19.9 m
Lifting Height
17.7 m
Horizontal reach
10.8 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.
PT200 Dimensions
Uses
Telescopic truck mounted platforms are popular among operators due to their high speed and simple mechanism. PT200 is an Italian access platform with high quality and long durability as well as elegance. Therefore for customers looking for high performance and durability can consider this lifting platform as one of their main choices. Since cables, chains and hydraulic pipes in this access platform are places inside the mast, these parts are protected against external harmful factors such as wind, sunlight and rain. Also because of the high quality paint and electric parts used in this truck mounted lift it can be an excellent choice for humid areas. Petrochemicals and oil refineries use this access platform commonly for painting their containers, installing equipment, piping, etc.
Working Diagram
Vertical Reach : 19.9 m
Capacity : A=250kg – B=200kg – C=120kg – D=80kg
PT 200 Working Diagram
Reviews
محسن مخدومی –
بالابر تلسکوپی PT 200
پشتیبانی کلایر –
با سلام. متاسفانه پیام شما برای بالابر پشت کامیونی مورد نظر به درستی منتشر نشده است.
PT200 is a telescopic truck mounted platform made by ISOLI in Italy. Capacity of this lifting platform is 250 kg and it’s suitable to lift 2 people. One of the benefits of this access platform is light weight is has compared to similar models. The light weight of this telescopictruck mounted lift is due to the strenx steel used in the boom part. This kind of steel is 3 times more sturdy than regular steel. Therefore due to the light weight of the access platform it can be installed on trucks heavier than 3.5 tons.
This telescopictruck mounted lift is well equipped with latest safety systems. Interlock system between the side jacks and the lifting platform, Anti-smash system, moment control, etc, are some of them. Therefore not only the safety of your operator is guaranteed but also your device is safe during the operation. Control system on this telescopic truck mounted lift is completely hydraulic proportional, to operate simple, fast and smooth.
Customers can order this access platform with aluminum or fiberglass (electrical insulator) platform based on the operation they are planning to do. Aluminum platforms are more durable but not suitable for electricity related activities. This truck mounted lift provides 19.9 meters of vertical working height and 10.8 meters of horizontal reach. One of its advantages is the high speed it provides in placement and operation.
CLAIER is the legal distributor of ISOLI in Iran, providing you with this telescopic truck mount with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
19.9 m
Lifting Height
17.7 m
Horizontal reach
10.8 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.

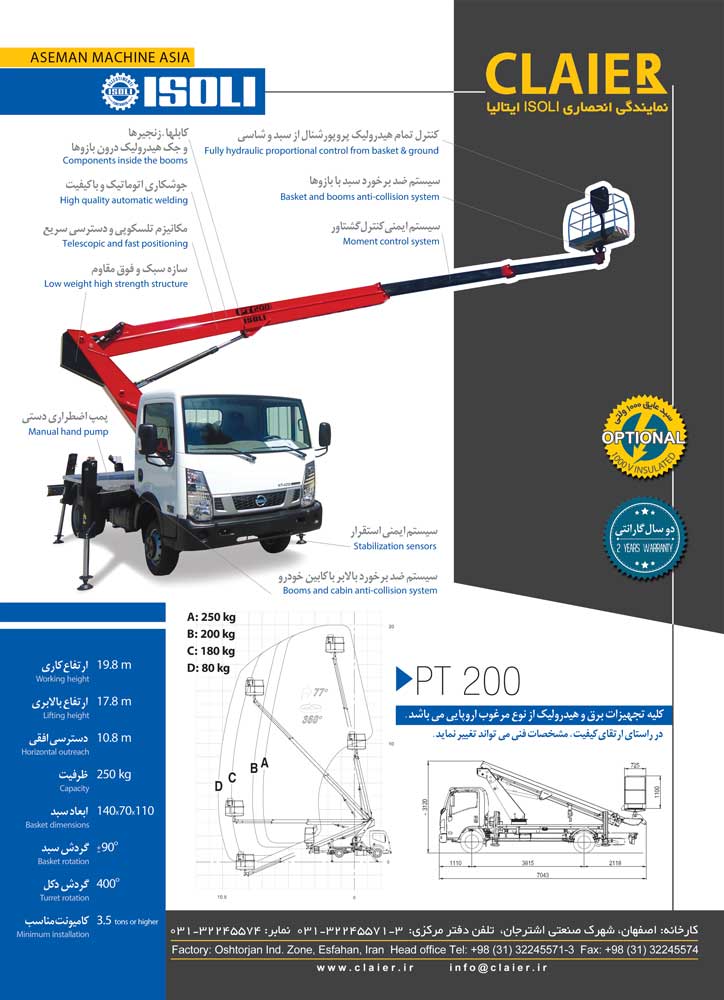

PT200 Dimensions
Uses
Telescopic truck mounted platforms are popular among operators due to their high speed and simple mechanism. PT200 is an Italian access platform with high quality and long durability as well as elegance. Therefore for customers looking for high performance and durability can consider this lifting platform as one of their main choices. Since cables, chains and hydraulic pipes in this access platform are places inside the mast, these parts are protected against external harmful factors such as wind, sunlight and rain. Also because of the high quality paint and electric parts used in this truck mounted lift it can be an excellent choice for humid areas. Petrochemicals and oil refineries use this access platform commonly for painting their containers, installing equipment, piping, etc.
Working Diagram
Vertical Reach : 19.9 m
Capacity : A=250kg – B=200kg – C=120kg – D=80kg
PT 200 Working Diagram
Reviews
محسن مخدومی –
بالابر تلسکوپی PT 200
پشتیبانی کلایر –
با سلام. متاسفانه پیام شما برای بالابر پشت کامیونی مورد نظر به درستی منتشر نشده است.
Factory and Head quarter:
محسن مخدومی –
بالابر تلسکوپی PT 200
پشتیبانی کلایر –
با سلام. متاسفانه پیام شما برای بالابر پشت کامیونی مورد نظر به درستی منتشر نشده است.
