Description

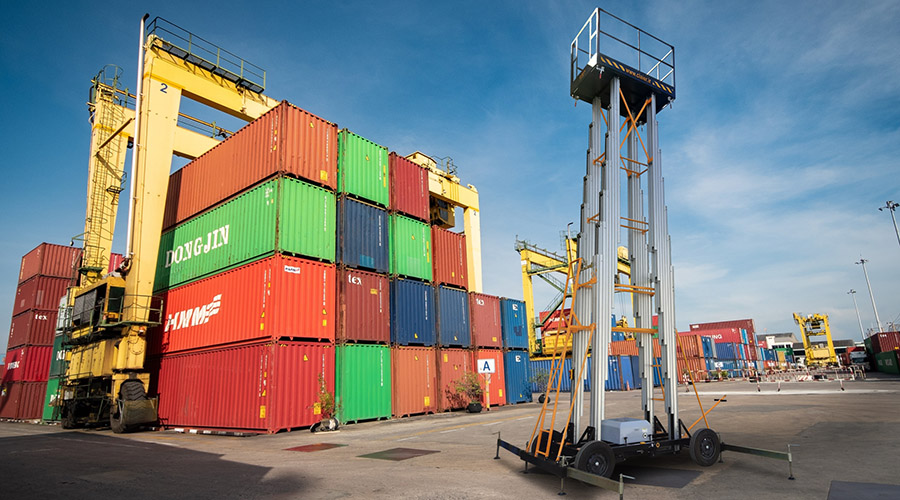

QR1800L quadruple mast lift
When working in height, using lifting platforms is the safest option. QR1800L is a quadruple mast lift with 18.2 meters of working height and 260 kg capacity suitable for 3 people. mast part of this access platform is made by aluminum making it light weight despite its large size. this quadruple mast lift is suitable for industrial and services purposes, useable in places such as large companies, airports, malls, masques, museums, etc.
This industrial lifting platform is 1880 kg, so it should be moved by 2 or 3 people specially on uneven surfaces. QR1800L quadruple mast lift is equipped with a system that avoids lifting in case of overweight and a discharge valve for emergency landing in case of accidents or technical difficulties. with height decreasing system this access platform can fit through doors with more than 3.2 meter height. 6 stabilizing jacks are designed for this mast lift to stabilize lifting.
Naturally, reaching 18 meter height is much easier using self-propelled or spider lifts but due to their expensive price, quadruple mast lift is a more affordable option. CLAIER uses the most high quality material possible, aluminum profiles with high durability and industrial doubled chains leading to high quality, high durability and safe products. therefore moving this access platform may be more difficult than self-propelled lifting platforms or spider lifts but it’s much more affordable and provides safety in lifting.
سایر ویژگی ها
- Made in Iran
- Aluminum profiles used in mast structure
- Steel platform and chassis
- Really light weight and easily moved by 1 person
- Electrostatic heated paint for longer lifespan
- Lifting valve in the hydraulic circuit
- Able to fit through 80cm wide doors and hallways
- single person platform with a toolbox and anti-slip tape
- Manual easy loading system to load on the back of trucks
- Easily placed and used by one person
- Plastic parts installed to keep the floor from getting scratched
- High maneuver and the ability to get through placed with different dimensions
- Designed and manufactured by latest European BSEN:280 standards
- ISO9001 certificate from QAL in England
Warranty and Insurance:
- 1 year warranty
- 20 years of services
- 2 years responsibility insurance
Safety:
- Industrial doubled chains used in the mast part
- Anti-lifting system installed in case of overweight
- Microswitch installed to recognize the start and the end of lifting course
- 24V control circuit, safe for the operator
- Emergency stop button on control panels
- 110 cm standard handrails
- Balance and safety provided by stabilizing jacks
- Discharge valve installed in case of power outage or emergencies
- Ant-slip tapes installed
Optional Features:
- AC/DC or rechargeable batteries
- 4 automobile tires (L series)
- Anti-explosion design for dangerous areas
- Special theater and cinema railing
Warning: Options mentioned may change to increase safety. call our specialists in CLAIER for more information.
کاربردها
18 meter quadruple mast lift has many purposes. many companies have high ceiling which need this lifting platform to reach. repairing equipment in this height, installing and taking care of lighting and many other duties. this access platform can be used in hangars because of their high ceilings to do repairs and cleaning.
Many malls need this kind of working height, these places can use QR1800L quadruple mast lift to reach equipment, clean and take care of lighting. masques and churches can use this lifting platform as well for decorating, cleaning, repairs and other purposes. many industries such as oil, metal and tile companies can also use this access platform.
