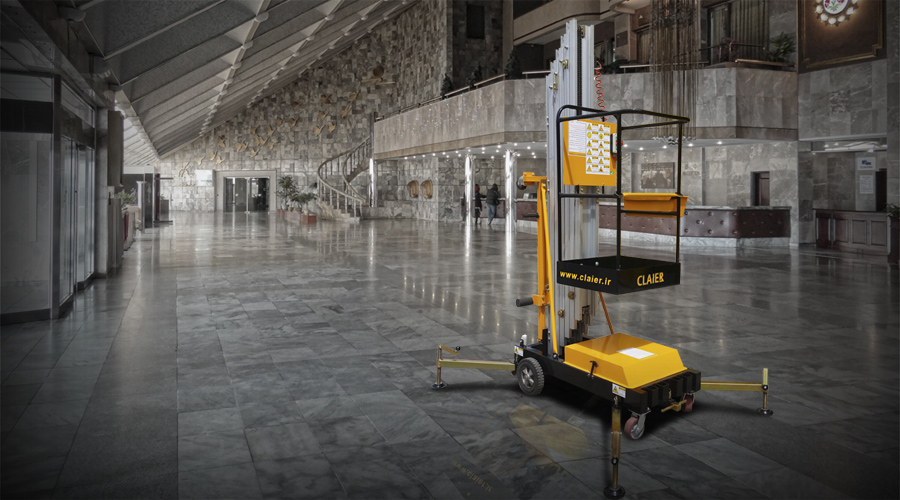

SR1000 single railed mast lift

بالابر هیدرولیکی تک نفره SR1000
بالابر هیدرولیکی نفربر کلایر
بالابر هیدرولیکی ستونی کلایر

بالابر هیدرولیکی تک نفره SR1000

دانلود کاتالوگ

Price request
مقایسه

General specifications

 SR1000 single railed mast lift

Single railed mast lift has always been a favorite with business owners because of its light weight and affordable price. SR1000 lifting platform is a single railed mast lift suitable for both indoor and outdoor activities. this access platform has 130kg capacity and can lift one person and their equipment up to 10.2 meters. due to aluminum profiles used to build the mast part of this working platform, it’s really light weight and can be moved easily by one person. If you need to use this mast lift on harsh surfaces like sand and soil, you can order SR1000L which has 4 automobile tires. SR1000L is the better option even for moving the lifting platform on carpet. this access platform is equipped with easy loading system making it easy to load on the back of a truck. one of its other features is height lowering system for fitting through doors.

Lifting in SR1000 single railed mast lift is done with hydraulic jack and doubled chains inside the aluminum rails.aluminum mast lifts are more affordable compared to other lifting platforms. these lifting platforms have less capacity and are more suitable for light activities.

Technical Specifications

Description

 SR1000 single railed mast lift

Single railed mast lift has always been a favorite with business owners because of its light weight and affordable price. SR1000 lifting platform is a single railed mast lift suitable for both indoor and outdoor activities. this access platform has 130kg capacity and can lift one person and their equipment up to 10.2 meters. due to aluminum profiles used to build the mast part of this working platform, it’s really light weight and can be moved easily by one person.

If you need to use this mast lift on harsh surfaces like sand and soil, you can order SR1000L which has 4 automobile tires. SR1000L is the better option even for moving the lifting platform on carpet. this access platform is equipped with easy loading system making it easy to load on the back of a truck. one of its other features is height lowering system for fitting through doors.

Lifting in SR1000 single railed mast lift is done with hydraulic jack and doubled chains inside the aluminum rails.aluminum mast lifts are more affordable compared to other lifting platforms. these lifting platforms have less capacity and are more suitable for light activities.

مشخصات فنی

 Working Height  10.2 m
 Lifting Height  8.2 m
 Capacity  130 kg
 Power Source  220V
 Operator Count  1 person
 Wheels  workshop wheels ( automobile tires optional)
 Control Panel  platform and chassis
 Weight  360 kg ( +100 kg with automobile tires)
 Platform Dimensions  60*60 cm

سایر ویژگی ها

    • Made in Iran
    • Aluminum profiles used in mast structure
    • Steel platform and chassis
    • Really light weight and easily moved by 1 person
    • Electrostatic heated paint for longer lifespan
    • Lifting valve in the hydraulic circuit
    • Able to fit through 80cm wide doors and hallways
    • single person platform with a toolbox and anti-slip tape
    • Manual easy loading system to load on the back of trucks
    • Easily placed and used by one person
    • Plastic parts installed to keep the floor from getting scratched
    • High maneuver and the ability to get through placed with different dimensions
    • Designed and manufactured by latest European BSEN:280 standards
    • ISO9001 certificate from QAL in England

    Warranty and Insurance:

    • 1 year warranty
    • 20 years of services
    • 2 years responsibility insurance

    Safety:

    • Industrial doubled chains used in the mast part
    • Anti-lifting system installed in case of overweight
    • Microswitch installed to recognize the start and the end of lifting course
    • 24V control circuit, safe for the operator
    • Emergency stop button on  control panels
    • 110 cm standard handrails
    • Balance and safety provided by stabilizing jacks
    • Discharge valve installed in case of power outage or emergencies
    •  Ant-slip tapes installed

    Optional Features:

    •  AC/DC or rechargeable batteries
    •  4 automobile tires (L series)
    •  Anti-explosion design for dangerous areas
    •  Special theater and cinema railing

    Warning: Options mentioned may change to increase safety. call our specialists in CLAIER for more information.

ابعاد

  • (L) : 145 cm (200 cm with tires)
  • (W) : 76 cm ( 130 cm with tires)
  • (H3) : 230 cm ( 235 with tires)
  • (H4) : 190 cm (only on workshop wheel model)
ابعاد بالابر تک ریل آلومینیومی
SR1000 dimensions

کاربردها

Many equipment placed in height need 10 meters of reach to be taken care of. many companies choose 10 meter high ceilings for their sheds. SR1000 single railed mast lifts provide 10 meters of reach safely. because of its light weight SR1000 is very popular among places like masques, museums, etc.

Single railed mast lift is also used in terminals, airports, metro stations and other general places in case of taking care of equipment placed in high places. in malls and commercial complexes to reach signs and decorating.

Many gas stations use ladders and other unsafe equipment to reach height, causing many incidents. mast lifts are affordable replacements. small companies that have less than 130 kg to lift can use this lifting platform to their activities in heigh places.

دیاگرام کاری

(H1) : 10.2 m

SR1000 working diagram

(H2) : 8.2 m
