The Italian company “ISOLI”, manufactures MPT140N for commercial trucks. Most important feature on this aerial work platform is the small dimensions and light weight is has compared to similar products made in Iran. This access platform provides 230 kg capacity and 13.5 meters of working height. If ordered with fiberglass platform the capacity will be reduced to 200 kg.
Many places around cities are narrow and hard to pass with large vehicles. Places like historical sites that need constant maintenance, where larger truck mounted lifts can not pass. This truck mounted articulated boom lift is there to help reach the power lines, traffic lights, cameras, etc. Strenx steel is used to make the boom part of this boom lift, making it more sturdy and lightweight at the same time. Making it safe for not hurting the chassis of the truck, so it is suitable for installing on many different kinds of small trucks.
Many up to date safety systems are installed on this aerial work platform. Overweight sensor, moment control, side jack interlock system, etc, guarantees the safety of your operator. This access platform provides maximum reach for the operator. The articulated mechanism allows the access platform to bridge over.
The Italian company “ISOLI”, manufactures MPT140N for commercial trucks. Most important feature on this aerial work platform is the small dimensions and light weight is has compared to similar products made in Iran. This access platform provides 230 kg capacity and 13.5 meters of working height. If ordered with fiberglass platform the capacity will be reduced to 200 kg.
Many places around cities are narrow and hard to pass with large vehicles. Places like historical sites that need constant maintenance, where larger truck mounted lifts can not pass. This truck mounted articulated boom lift is there to help reach the power lines, traffic lights, cameras, etc. Strenx steel is used to make the boom part of this boom lift, making it more sturdy and lightweight at the same time. Making it safe for not hurting the chassis of the truck, so it is suitable for installing on many different kinds of small trucks.
Many up to date safety systems are installed on this aerial work platform. Overweight sensor, moment control, side jack interlock system, etc, guarantees the safety of your operator. This access platform provides maximum reach for the operator. The articulated mechanism allows the access platform to bridge over.
Technical Specifications
Working Height
13.5 m
Lifting Height
11.5 m
Horizontal reach
7 m
Max Capacity
230 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Nissan and Toyota Hilux
Mast Rotation
270°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.

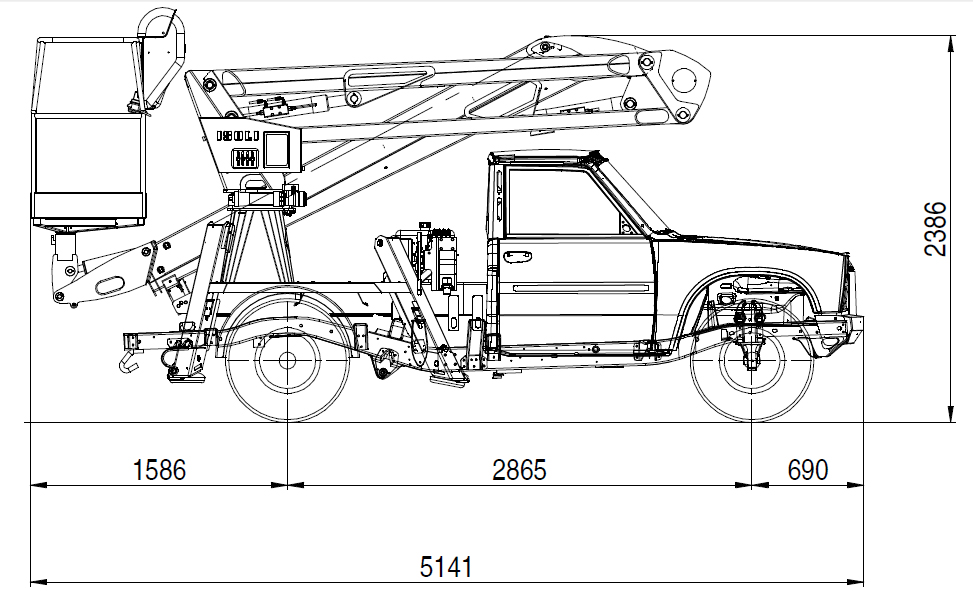

Dimensions
Dimensions may differ based on the type of truck
Uses
Working in height have always been a concern for many companies. reaching certain heights in historical sites with narrow paths is in need of a hydraulic lift. MP140N provides access to that height. Also, larger truck mounted platforms may not be able to go on mountains to access the power lines there, therefore this articulated truck mounted platform is a betten choice. This lifting platform can be installed on an offroad-suitable truck to easily access harder to reach places.

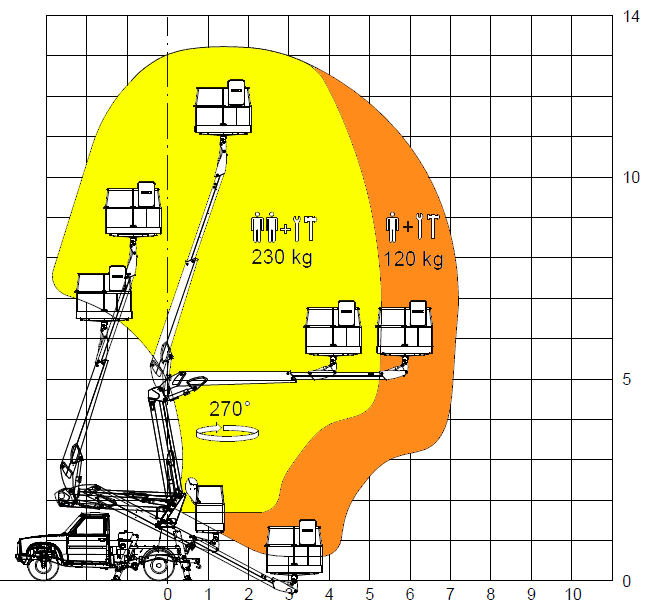

Working Diagram
Vertical Reach : 13.5 m
Capacity: A=230kg – B=120kg
