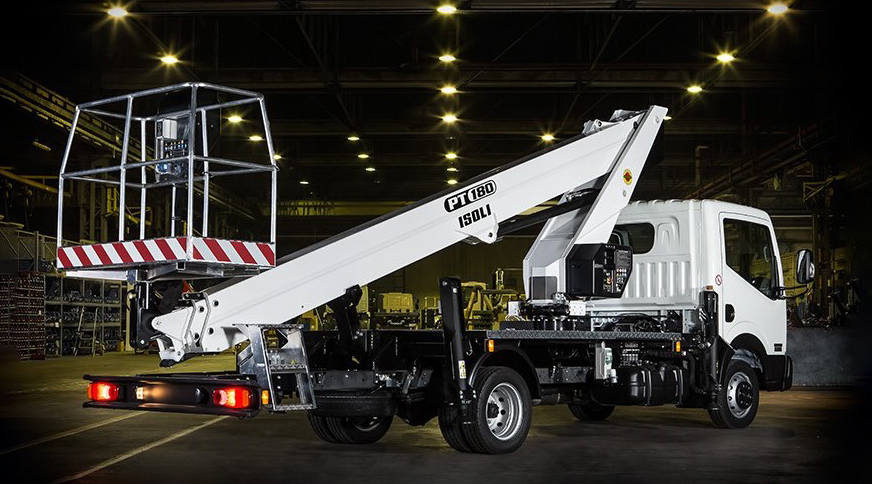

PT180 is an 18 meter telescopic lifting platform installed on the back of lightweight cargo trucks. Its common to use truck mounted platforms nowadays. This truck mount is made in Italy by ISOLI and assembled in Iran by CLAIER (its legal distributor). One of features making this truck mount unique is its lightweight structure compared to similar models made in Japan or Iran.
Telescopic booms on this lifting platform are made with Strenx steel. This kind of steel has 3 times the strength of the normal kind kind of steel, therefore the booms on this lifting platform are light and durable. Making this telescopic truck mounted platform suitable for installing on trucks with more than 3.5 tons of weight, as well as decreasing the depreciation of the device. This feature also makes the lifespan of this device longer.
All the cables, chains and equipment on this lift are concealed inside the boom part. Making it covered against external destructive factors such as sunlight, wind and rain and expanding its lifespan. PT180 has proportional hydraulic control system helping the lifting platform work smoothly and easily. Many new safety systems are installed on this truck mounted platform such as anti-smash system to prevent the telescopic part from smashing intro the driver’s cabin. You can order this telescopic truck mount with fiberglass platform or aluminum platform based your preference. this boom lift comes with 1 year warranty and 10 years of services.
PT180 is an 18 meter telescopic lifting platform installed on the back of lightweight cargo trucks. Its common to use truck mounted platforms nowadays. This truck mount is made in Italy by ISOLI and assembled in Iran by CLAIER (its legal distributor). One of features making this truck mount unique is its lightweight structure compared to similar models made in Japan or Iran.
Telescopic booms on this lifting platform are made with Strenx steel. This kind of steel has 3 times the strength of the normal kind kind of steel, therefore the booms on this lifting platform are light and durable. Making this telescopic truck mounted platform suitable for installing on trucks with more than 3.5 tons of weight, as well as decreasing the depreciation of the device. This feature also makes the lifespan of this device longer.
All the cables, chains and equipment on this lift are concealed inside the boom part. Making it covered against external destructive factors such as sunlight, wind and rain and expanding its lifespan. PT180 has proportional hydraulic control system helping the lifting platform work smoothly and easily. Many new safety systems are installed on this truck mounted platform such as anti-smash system to prevent the telescopic part from smashing intro the driver’s cabin. You can order this telescopic truck mount with fiberglass platform or aluminum platform based your preference. this boom lift comes with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
18 m
Lifting Height
16 m
Horizontal reach
10.3 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.
Uses
18 meter telescopic truck mount has many purposes. But one of its main purposes is for road maintenance and city services because of its high speed and capacity. For example installing, repairing and maintaining traffic lights and cameras are done easily with this lifting platform. This truck mounted lifting platform is commonly used in oil refineries and petrochemicals. for repairs and maintenance of equipment and regular inspections. One of its advantages compared to self propelled lifting platforms is that these truck mounted platforms can be moved for longer distances. Although these lifting platforms are more expensive than the self propelled kind.

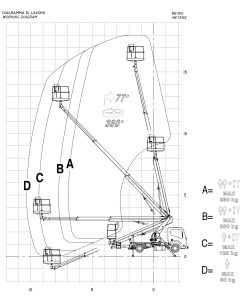

Working Diagram
Vertical Reach: 18 m
Capacity: A=250kg – B=200kg – C=120kg – D=80kg
Reviews
There are no reviews yet.
Be the first to review “PT180 Telescopic Truck Mount” Cancel reply
PT180 is an 18 meter telescopic lifting platform installed on the back of lightweight cargo trucks. Its common to use truck mounted platforms nowadays. This truck mount is made in Italy by ISOLI and assembled in Iran by CLAIER (its legal distributor). One of features making this truck mount unique is its lightweight structure compared to similar models made in Japan or Iran.
Telescopic booms on this lifting platform are made with Strenx steel. This kind of steel has 3 times the strength of the normal kind kind of steel, therefore the booms on this lifting platform are light and durable. Making this telescopic truck mounted platform suitable for installing on trucks with more than 3.5 tons of weight, as well as decreasing the depreciation of the device. This feature also makes the lifespan of this device longer.
All the cables, chains and equipment on this lift are concealed inside the boom part. Making it covered against external destructive factors such as sunlight, wind and rain and expanding its lifespan. PT180 has proportional hydraulic control system helping the lifting platform work smoothly and easily. Many new safety systems are installed on this truck mounted platform such as anti-smash system to prevent the telescopic part from smashing intro the driver’s cabin. You can order this telescopic truck mount with fiberglass platform or aluminum platform based your preference. this boom lift comes with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
18 m
Lifting Height
16 m
Horizontal reach
10.3 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.
Uses
18 meter telescopic truck mount has many purposes. But one of its main purposes is for road maintenance and city services because of its high speed and capacity. For example installing, repairing and maintaining traffic lights and cameras are done easily with this lifting platform. This truck mounted lifting platform is commonly used in oil refineries and petrochemicals. for repairs and maintenance of equipment and regular inspections. One of its advantages compared to self propelled lifting platforms is that these truck mounted platforms can be moved for longer distances. Although these lifting platforms are more expensive than the self propelled kind.
Working Diagram
Vertical Reach: 18 m
Capacity: A=250kg – B=200kg – C=120kg – D=80kg
Reviews
There are no reviews yet.
Be the first to review “PT180 Telescopic Truck Mount” Cancel reply
PT180 is an 18 meter telescopic lifting platform installed on the back of lightweight cargo trucks. Its common to use truck mounted platforms nowadays. This truck mount is made in Italy by ISOLI and assembled in Iran by CLAIER (its legal distributor). One of features making this truck mount unique is its lightweight structure compared to similar models made in Japan or Iran.
Telescopic booms on this lifting platform are made with Strenx steel. This kind of steel has 3 times the strength of the normal kind kind of steel, therefore the booms on this lifting platform are light and durable. Making this telescopic truck mounted platform suitable for installing on trucks with more than 3.5 tons of weight, as well as decreasing the depreciation of the device. This feature also makes the lifespan of this device longer.
All the cables, chains and equipment on this lift are concealed inside the boom part. Making it covered against external destructive factors such as sunlight, wind and rain and expanding its lifespan. PT180 has proportional hydraulic control system helping the lifting platform work smoothly and easily. Many new safety systems are installed on this truck mounted platform such as anti-smash system to prevent the telescopic part from smashing intro the driver’s cabin. You can order this telescopic truck mount with fiberglass platform or aluminum platform based your preference. this boom lift comes with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
18 m
Lifting Height
16 m
Horizontal reach
10.3 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.
Uses
18 meter telescopic truck mount has many purposes. But one of its main purposes is for road maintenance and city services because of its high speed and capacity. For example installing, repairing and maintaining traffic lights and cameras are done easily with this lifting platform. This truck mounted lifting platform is commonly used in oil refineries and petrochemicals. for repairs and maintenance of equipment and regular inspections. One of its advantages compared to self propelled lifting platforms is that these truck mounted platforms can be moved for longer distances. Although these lifting platforms are more expensive than the self propelled kind.
Working Diagram
Vertical Reach: 18 m
Capacity: A=250kg – B=200kg – C=120kg – D=80kg
Reviews
There are no reviews yet.
Be the first to review “PT180 Telescopic Truck Mount” Cancel reply
PT180 is an 18 meter telescopic lifting platform installed on the back of lightweight cargo trucks. Its common to use truck mounted platforms nowadays. This truck mount is made in Italy by ISOLI and assembled in Iran by CLAIER (its legal distributor). One of features making this truck mount unique is its lightweight structure compared to similar models made in Japan or Iran.
Telescopic booms on this lifting platform are made with Strenx steel. This kind of steel has 3 times the strength of the normal kind kind of steel, therefore the booms on this lifting platform are light and durable. Making this telescopic truck mounted platform suitable for installing on trucks with more than 3.5 tons of weight, as well as decreasing the depreciation of the device. This feature also makes the lifespan of this device longer.
All the cables, chains and equipment on this lift are concealed inside the boom part. Making it covered against external destructive factors such as sunlight, wind and rain and expanding its lifespan. PT180 has proportional hydraulic control system helping the lifting platform work smoothly and easily. Many new safety systems are installed on this truck mounted platform such as anti-smash system to prevent the telescopic part from smashing intro the driver’s cabin. You can order this telescopic truck mount with fiberglass platform or aluminum platform based your preference. this boom lift comes with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
18 m
Lifting Height
16 m
Horizontal reach
10.3 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.
Uses
18 meter telescopic truck mount has many purposes. But one of its main purposes is for road maintenance and city services because of its high speed and capacity. For example installing, repairing and maintaining traffic lights and cameras are done easily with this lifting platform. This truck mounted lifting platform is commonly used in oil refineries and petrochemicals. for repairs and maintenance of equipment and regular inspections. One of its advantages compared to self propelled lifting platforms is that these truck mounted platforms can be moved for longer distances. Although these lifting platforms are more expensive than the self propelled kind.
Working Diagram
Vertical Reach: 18 m
Capacity: A=250kg – B=200kg – C=120kg – D=80kg
Reviews
There are no reviews yet.
Be the first to review “PT180 Telescopic Truck Mount” Cancel reply
PT180 is an 18 meter telescopic lifting platform installed on the back of lightweight cargo trucks. Its common to use truck mounted platforms nowadays. This truck mount is made in Italy by ISOLI and assembled in Iran by CLAIER (its legal distributor). One of features making this truck mount unique is its lightweight structure compared to similar models made in Japan or Iran.
Telescopic booms on this lifting platform are made with Strenx steel. This kind of steel has 3 times the strength of the normal kind kind of steel, therefore the booms on this lifting platform are light and durable. Making this telescopic truck mounted platform suitable for installing on trucks with more than 3.5 tons of weight, as well as decreasing the depreciation of the device. This feature also makes the lifespan of this device longer.
All the cables, chains and equipment on this lift are concealed inside the boom part. Making it covered against external destructive factors such as sunlight, wind and rain and expanding its lifespan. PT180 has proportional hydraulic control system helping the lifting platform work smoothly and easily. Many new safety systems are installed on this truck mounted platform such as anti-smash system to prevent the telescopic part from smashing intro the driver’s cabin. You can order this telescopic truck mount with fiberglass platform or aluminum platform based your preference. this boom lift comes with 1 year warranty and 10 years of services.
Technical Specifications
Working Height
18 m
Lifting Height
16 m
Horizontal reach
10.3 m
Capacity
250 kg ( Based on the working diagram)
Operator Count
2 people
Control
Proportionally from the platform and chassis
Platform Dimensions
140 * 70 * 110
Proper Truck
Weigh more than 3.5 tons
Mast Rotation
400°
Other Features
Made in Italy
Stenx boom made by durable steel
Sandblast, paint primer and electrostatic paint
Telescopic hydraulic lifting system
Completely proportional hydraulic control system
Truck used as the PTO source
Mast rotation without getting out of range
90° + platform rotation
Horizontal reach limiting system based on platform weight
Wind resistance up to 12.5 m/s
Truck on/off switch from lift’s platform
Oil filtering system in high pressures
Hour counter
Power outlet with earth system on the platform
Designed and manufactured based on latest BSEN:280 standards
CE and ISO certificates
Warranty and services:
1 year warranty
10 years of services
Safety Features:
Automatic balance system for the platform
Anti-lifting in case side jacks are not placed properly
Anti-overweight system
Anti-smash sensors
Locking systems on hydraulic jacks
Safety belt installation placement on the platform
Anti-slipping checkered plate on the platform
Emergency pump for lowering the device in case of emergency
Emergency stop button in case of emergency
Optional Features:
Fiberglass platform
Proper piping for pressure air and water
Projectors on the platform for working at night
Rolling light on the Truck cabin
220V helper electric pump for indoor activity
Special mats for under the side jacks
Automatic side jack placement system
Warning: Options mentioned above may differ due to safety or quality upgrade. Call our specialists for more info.
Dimensions
Dimensions may differ based on the type of truck.
Uses
18 meter telescopic truck mount has many purposes. But one of its main purposes is for road maintenance and city services because of its high speed and capacity. For example installing, repairing and maintaining traffic lights and cameras are done easily with this lifting platform. This truck mounted lifting platform is commonly used in oil refineries and petrochemicals. for repairs and maintenance of equipment and regular inspections. One of its advantages compared to self propelled lifting platforms is that these truck mounted platforms can be moved for longer distances. Although these lifting platforms are more expensive than the self propelled kind.

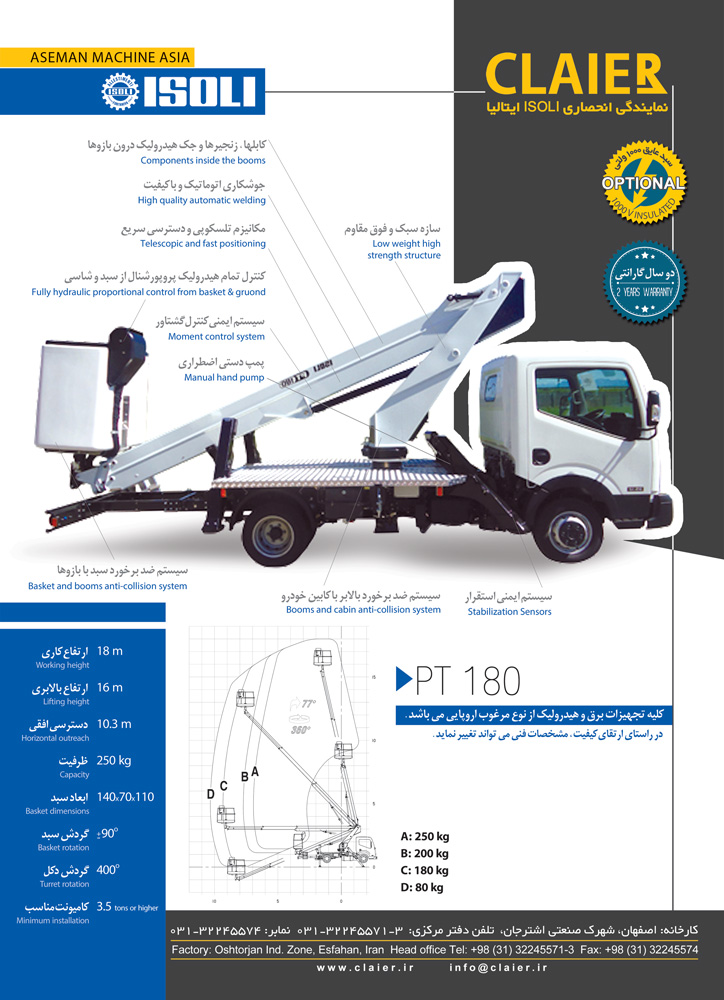

Working Diagram
Vertical Reach: 18 m
Capacity: A=250kg – B=200kg – C=120kg – D=80kg
Reviews
There are no reviews yet.
Be the first to review “PT180 Telescopic Truck Mount” Cancel reply
Comments
Reviews
There are no reviews yet.
Be the first to review “PT180 Telescopic Truck Mount” Cancel reply
Reviews
There are no reviews yet.
